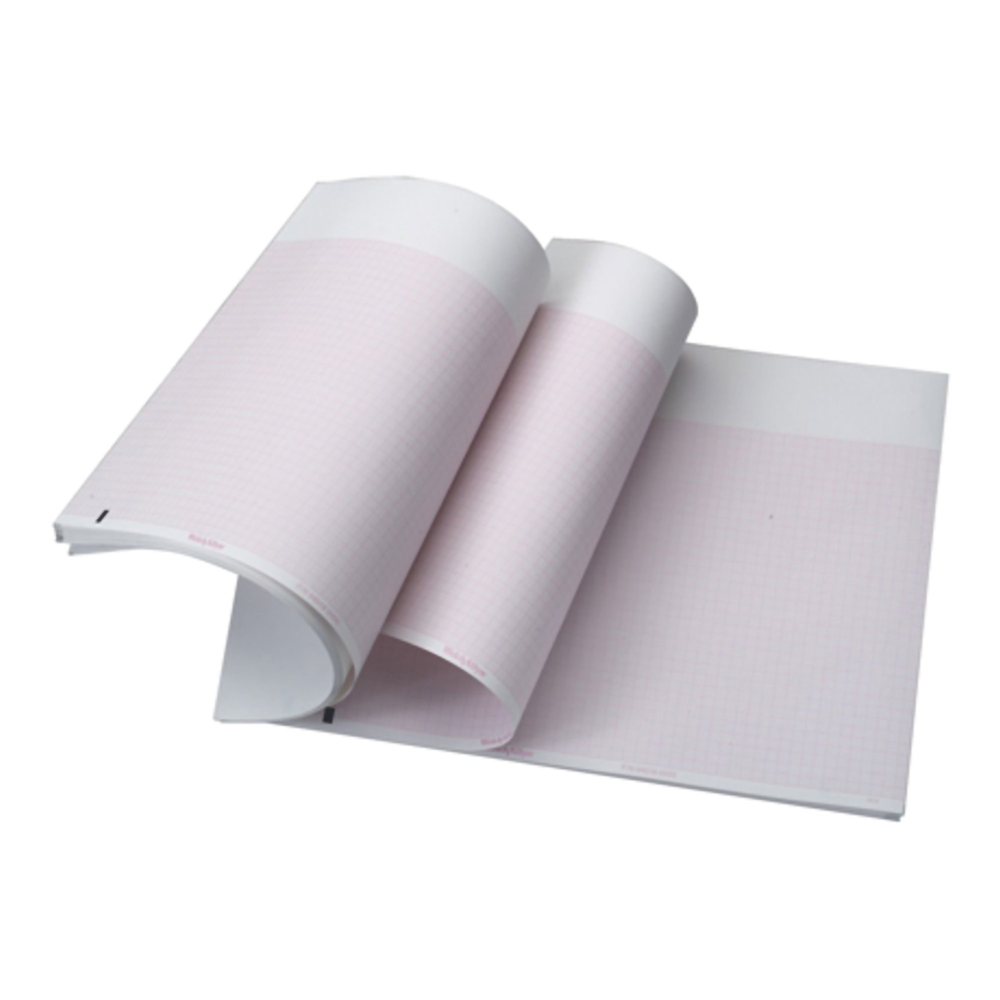

Product Specifications
| Specification | Details |
| Manufacturer / Brand | Welch Allyn / Hillrom (Baxter) |
| Manufacturer # / SKU | 105353 |
| Product Type | Diagnostic ECG Recording Paper |
| Paper Type | Thermal Paper |
| Chart Type | Z-Fold (Fan-Fold) |
| Dimensions | 8.25 x 11 Inches (21 x 28 cm) |
| Grid Color | Red Grid |
| Compatible Devices | Welch Allyn CP 100, CP 150, CP 200 |
| Packaging (Pack) | 200 Sheets per Pack |
| Packaging (Case) | 5 Packs per Case (1,000 Sheets Total) |
Key Features
-
High-Contrast Tracing: The thermal coating is optimized for Welch Allyn print heads, producing crisp, dark waveforms against the red grid for easy interpretation.
-
Precise Z-Fold Design: The fan-fold (Z-fold) format allows for seamless feeding through the electrocardiograph and makes it easy to flip through multi-page patient reports.
-
Archival Quality: Formulated to resist fading over time when stored correctly, ensuring that diagnostic records remain legible for the required medical retention periods.
-
Standard Medical Grid: Features standard 1mm small squares and 5mm large squares, allowing for manual measurement of heart rate, PR interval, QRS complex, and QT segments.
-
Low-Lint Construction: Minimizes paper dust and buildup within the printer mechanism, extending the life of the thermal print head and reducing maintenance.
Clinical Applications
-
Resting ECG Exams: The standard paper for 12-lead resting electrocardiographs in primary care and cardiology clinics.
-
Stress Testing: Durable enough to handle the rapid printing required during treadmill or pharmacological stress tests.
-
Patient Records: Provides a full-size (letter) printout that fits perfectly into standard patient charts and folders.
⚠️ Usage Note: To ensure continuous operation, the paper should be loaded with the red grid facing the correct direction as indicated in the CP Series user manual.
⚠️ Storage: Thermal paper is sensitive to heat, light, and certain chemicals (like hand sanitizers or plasticizers in PVC folders). Store in a cool, dark place to prevent darkening or fading of the paper.
⚠️ Compatibility: This paper is specifically sized for the CP 100/150/200 series. Using incorrect paper sizes can cause paper jams or damage to the printer door.
